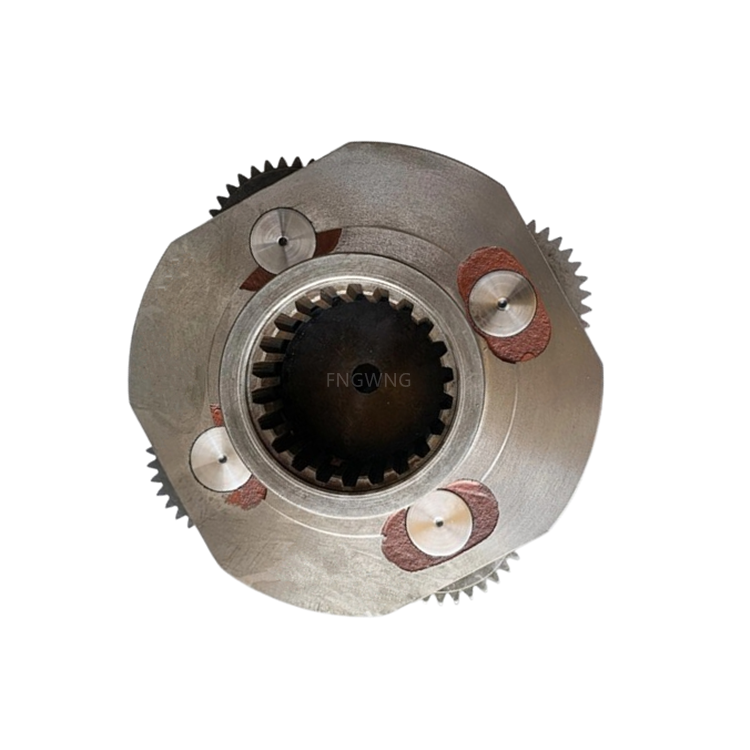

Excavator Swing Gear Planetary Carrier

October 22, 2024

Excavator Swing Gear Planetary Carrier is a critical component in the rotary mechanism of many excavators. This part plays a significant role in transferring power from the hydraulic motor to the excavator's upper structure, enabling it to rotate.

Function and Importance:

- Power Transfer:The planetary carrier is part of the planetary gear system that helps transmit power efficiently.

- Rotation Control: It enables smooth rotation of the excavator's upper carriage relative to its undercarriage, allowing operators to precisely position the excavator's arm and bucket for various tasks.

- Durability: Given the high torque and continuous operation required in construction environments, the planetary carrier must be robust and durable.

Components:

- Planetary Gears: These gears rotate around the sun gear (another component of the planetary gear set) and mesh with the internal teeth of the ring gear.

- Sun Gear: Driven directly by the hydraulic motor, the sun gear engages with the planetary gears.

- Ring Gear: Fixed within the excavator’s frame, the ring gear has internal teeth that engage with the planetary gears.

- Carrier: Holds the planetary gears and allows them to rotate while keeping their axes fixed relative to each other.

Maintenance and Troubleshooting:

- Regular Inspection: Regularly inspecting the planetary carrier for wear, damage, or misalignment is crucial for maintaining optimal performance.

- Lubrication: Proper lubrication is essential to reduce friction and wear on the gears and bearings within the carrier.

- Replacement: If significant wear or damage is detected, replacement may be necessary to avoid further damage or failure.

Replacement Parts:

When replacing a planetary carrier, it is important to ensure compatibility with your specific excavator model. Consulting the manufacturer's specifications or contacting a parts supplier can help you find the correct replacement part.

If you need to purchase the Excavator Swing Gear Planetary Carrier, feel free to Send Your Inquiry!
