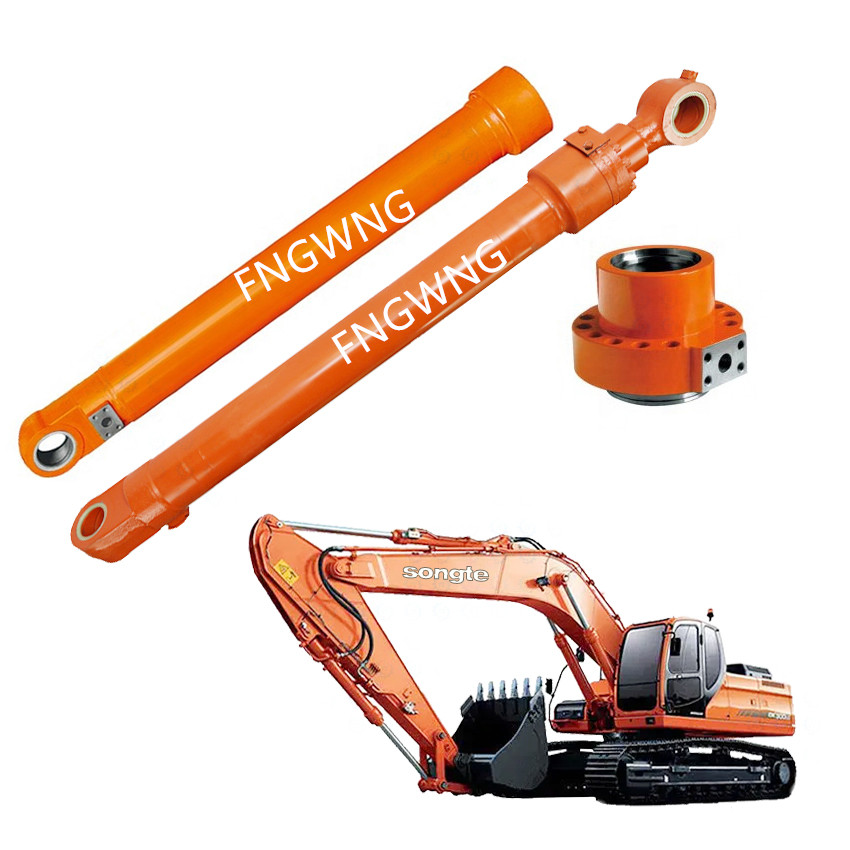

The assembly of an excavator's
hydraulic cylinder is a critical process that requires precision and expertise to ensure the proper functioning and longevity of the equipment. Here’s a general overview of the steps involved in assembling a hydraulic cylinder for an excavator:
1. Preparation
- Gather Tools and Materials: Ensure you have all necessary tools, including wrenches, sockets, torque wrench, and any specific tools recommended by the manufacturer.
- Inspect Components: Carefully inspect all components for damage or wear. This includes the cylinder body, piston, seals, O-rings, and any other parts.
2. Cleaning
- Clean All Parts: Thoroughly clean all parts with a suitable solvent to remove any dirt, grease, or debris. This is crucial for ensuring proper sealing and performance.
3. Installation of Seals and O-Rings
- Apply Lubricant: Apply a light coat of hydraulic oil or another suitable lubricant to the seals and O-rings to ease installation and prevent damage.
- Install Seals: Carefully install the seals and O-rings into their respective grooves. Make sure they are seated correctly and not twisted or damaged during installation.
4. Assembling the Cylinder
- Assemble Piston: Slide the piston into the cylinder bore. Ensure it slides smoothly without binding.
- Install End Caps: Attach the end caps (head and cap ends) to the cylinder body. Tighten the bolts to the specified torque settings using a torque wrench to ensure even pressure distribution.
5. Final Checks
- Check Alignment: Ensure all components are properly aligned and that there is no misalignment that could cause premature wear.
- **Pressure Test:** Before mounting the cylinder on the excavator, perform a pressure test if possible to check for leaks. This step can help identify any issues early.
6. Mounting on Excavator
- Mount Cylinder: Once tested and confirmed to be leak-free, mount the cylinder onto the excavator according to the manufacturer’s specifications.
- Connect Hydraulic Lines: Connect the hydraulic lines carefully, ensuring they are properly routed and secured to avoid damage.
Safety Considerations
- Always follow the manufacturer's safety guidelines and wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.
- Work in a well-lit and organized environment to minimize errors and improve efficiency.
Proper assembly of the hydraulic cylinder is essential for the safe and efficient operation of the excavator. If you're not confident in your ability to complete this task, it may be best to consult with a professional technician or contact the manufacturer for guidance.
