Excavator's hydraulic boom cylinder assembly

April 03, 2023

Excavator's Hydraulic Boom Cylinder is a crucial component of the machine that enables the movement and operation of the excavator's arm or boom. Here's a breakdown of its key aspects:

1. Function: The primary function of the hydraulic boom cylinder is to extend and retract, which in turn lifts and lowers the excavator's boom. This action allows the excavator to dig, lift, and move materials.

2. Components:

- Piston: Moves back and forth inside the cylinder.

- Rod: Connected to the piston, it extends outside the cylinder and connects to the boom structure.

- Cylinder Barrel: Houses the piston and rod.

-Caps: These are at both ends of the cylinder barrel and seal the chamber.

3.Hydraulic System Connection: The cylinder is connected to the excavator's hydraulic system, which provides the necessary pressure to move the piston within the cylinder. Hydraulic fluid is pushed into the cylinder, causing the piston (and thus the rod) to move, resulting in the boom's movement.

4. Maintenance and Care: Regular maintenance is essential for the longevity and proper functioning of the hydraulic boom cylinder. This includes checking for leaks, ensuring proper hydraulic fluid levels, and maintaining the seals and gaskets to prevent contamination and ensure smooth operation.

5. Troubleshooting Common Issues:

- Leakage: Can be due to worn-out seals or damaged cylinder walls.

- Slow Movement: Often caused by low hydraulic fluid levels, air in the hydraulic system, or internal wear and tear.

- Inconsistent Performance: Could indicate problems with the Hydraulic Pump, valves, or issues within the cylinder itself.

Proper care and regular inspections can help maintain the efficiency and effectiveness of the hydraulic boom cylinder, ensuring your excavator operates smoothly and safely.

If you have any specific questions or need more detailed information on any aspect of excavator hydraulic boom cylinders, feel free to Send Your Inquiry!

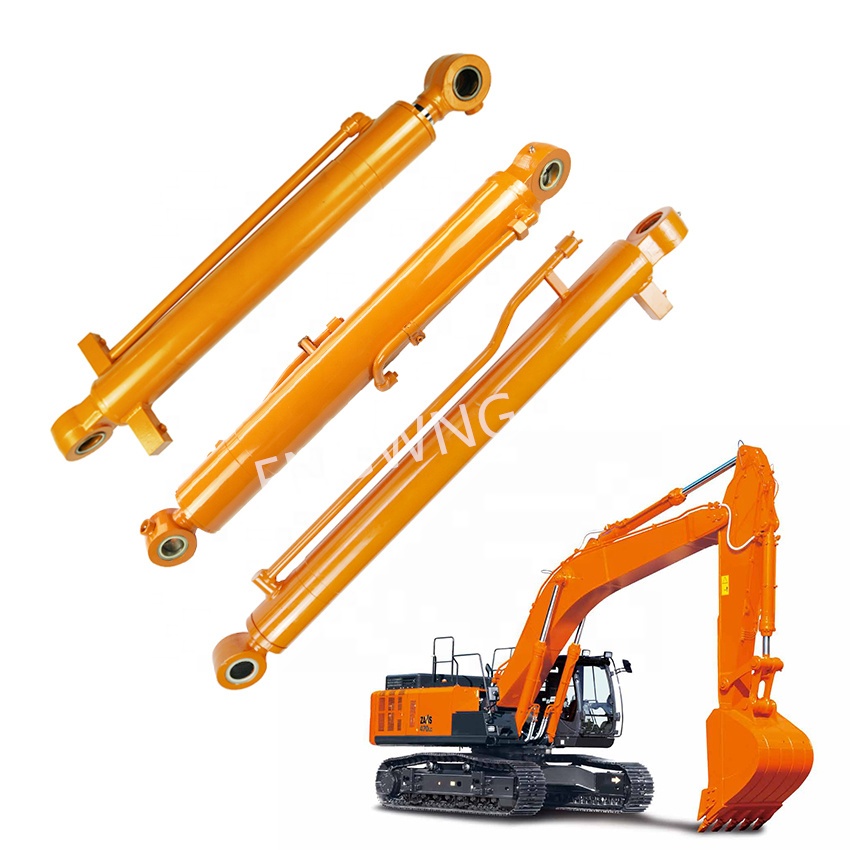

Excavator Hydraulic Cylinder Boom Arm Bucket Cylinder Assembly For Doosan DH55 Excavator6
