Excavator Hydraulic Main Relief Valve

August 01, 2024

The main relief valve in an excavator's hydraulic system plays a critical role in protecting the hydraulic components from excessive pressure that could cause damage. Here’s a brief overview of what it is and how it works:

What is a Excavator Hydraulic Main Relief Valve?

- Function: The main relief valve (also known as a safety valve or pressure relief valve) is designed to limit the maximum pressure within the hydraulic system. It does this by opening a path for hydraulic fluid to flow back to the reservoir when the pressure exceeds a predetermined level.

- Purpose: Its primary purpose is to prevent overpressure conditions that can lead to hydraulic system failure, damage to components, or even injury to operators.

How Does It Work?

1. Pressure Sensing Mechanism: The valve contains a spring-loaded mechanism that senses the hydraulic pressure. When the pressure rises above the set threshold, the valve begins to open.

2. Pressure Release: As the valve opens, it allows hydraulic fluid to bypass the pump and flow directly back to the tank, thereby reducing the system pressure.

3. Spring Force Adjustment: The force exerted by the spring determines the pressure at which the valve will open. This setting can usually be adjusted to match the specific requirements of the hydraulic system.

Importance in Excavators

-Safety: Ensures that the system operates safely within its design limits.

- Component Protection: Prevents damage to hydraulic pumps, hoses, and other components that could occur if the pressure were to exceed safe levels.

- Efficiency: Helps maintain optimal performance by keeping pressures within their designed operating range.

Maintenance and Troubleshooting

- Regular Inspection: It’s important to regularly inspect and test the main relief valve to ensure it’s functioning correctly.

- Adjustment and Calibration: In some cases, adjustments might be necessary due to wear or changes in system requirements.

- Replacement: If the valve fails to maintain proper pressure control, it may need to be replaced.

Understanding and maintaining the main relief valve is essential for ensuring the longevity and reliability of your excavator’s hydraulic system.

If your excavator need to be replaced Hydraulic Main Relief Valve or need to repair, feel free to Send Us Your Inquiry!

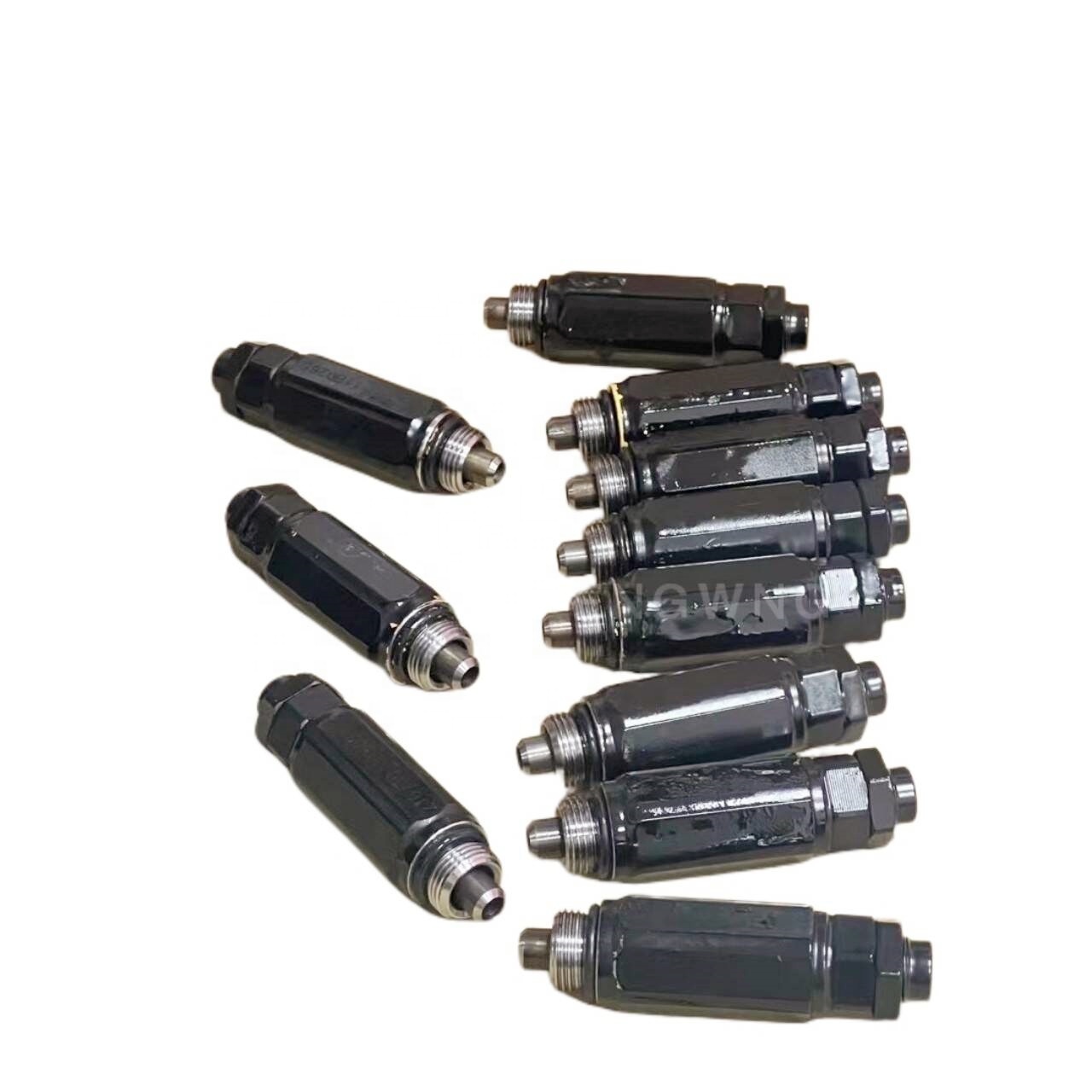

FNGWNG Hydraulic part main relief valve solenoid valve for Ishikawa Island 18 Mini Excavator1
