Construction Machinery Parts Piston Motor

October 22, 2024

Construction Machinery Parts Piston Motor is a type of hydraulic motor commonly used in heavy machinery and construction equipment. These motors convert hydraulic energy (pressure and flow) into mechanical energy (rotational motion). They are essential components in various construction and industrial applications, such as excavators, skid-steer loaders, and other heavy machinery.

Key Components and Working Principle

1. Pistons: The pistons move within cylinders to generate rotational force.

2. Cylinders: These are the chambers where the pistons move back and forth.

3. Swash Plate or Inclined Plane: This component controls the stroke length of the pistons, which affects the displacement and speed of the motor.

4. Valve Plate: Manages the distribution of hydraulic fluid to the pistons.

5. Output Shaft: Transmits the rotational motion from the pistons to the machinery.

Types of Piston Motors

- Axial Piston Motors: These have pistons arranged parallel to the output shaft. They are often used in high-pressure applications.

- Radial Piston Motors: Pistons are arranged radially around the output shaft. They are typically used for lower-speed, higher-torque applications.

Applications

- Excavators: For driving the tracks or rotating the superstructure.

- Loaders: To power the bucket movements.

- Mining Equipment: Used in heavy-duty machinery for digging and transporting materials.

- Construction Vehicles: Such as bulldozers and cranes, where precise control over torque and speed is crucial.

Maintenance and Considerations

- Regular inspection and maintenance are critical to ensure optimal performance and longevity.

- Proper hydraulic fluid management is important to avoid contamination and wear.

- Adjusting the swash plate angle can change the motor's displacement and speed, making it adaptable to different tasks.

If you need more specific information or have any questions about particular aspects of piston motors in construction machinery, feel free to Send Your Inquiry!

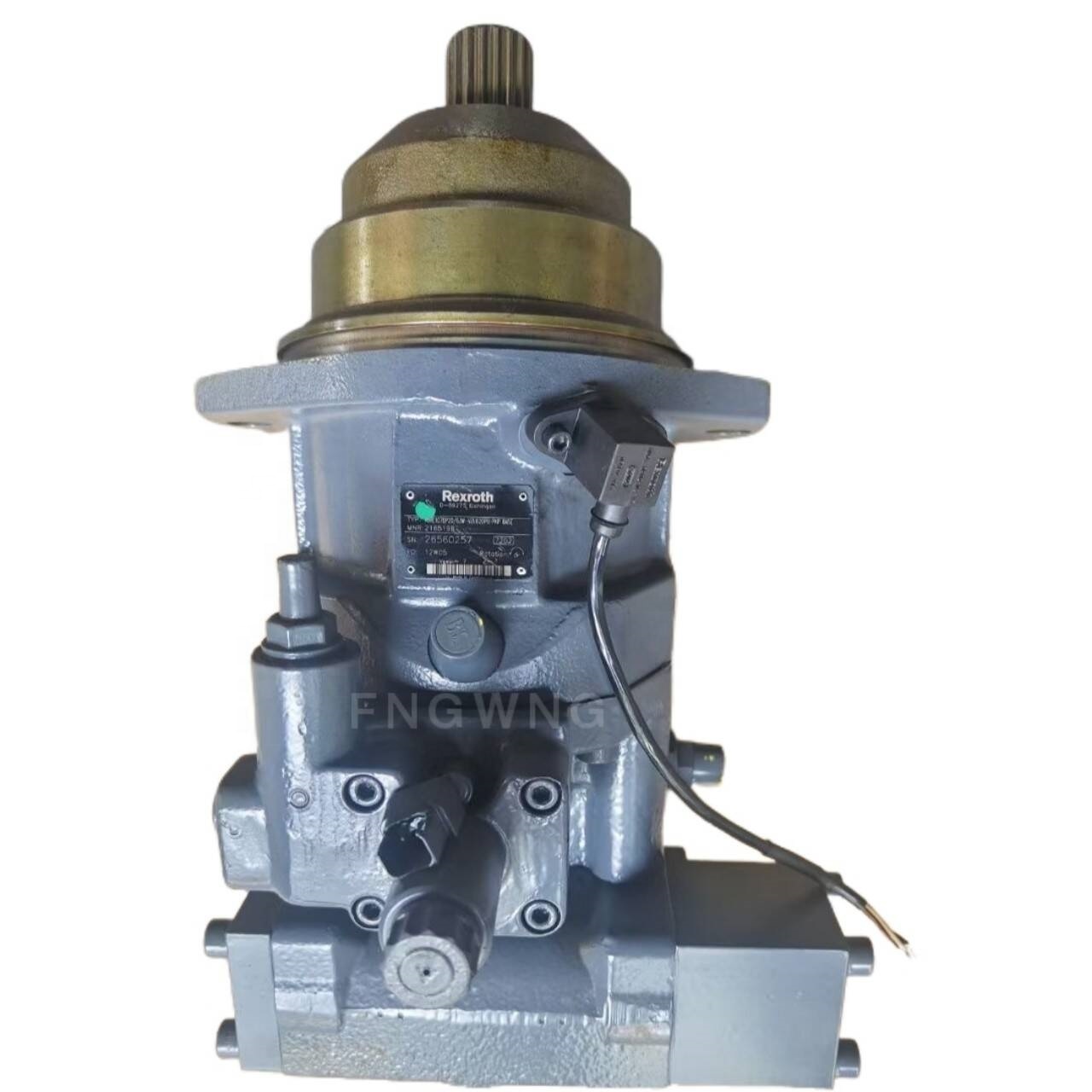

Rexroth A6VE107 A6VE107HZ163W-VZl080PT20 A6VE107HZ3/63W-VZL22B-S Loop Hydraulic Axial Piston Motor For Rexroth1
