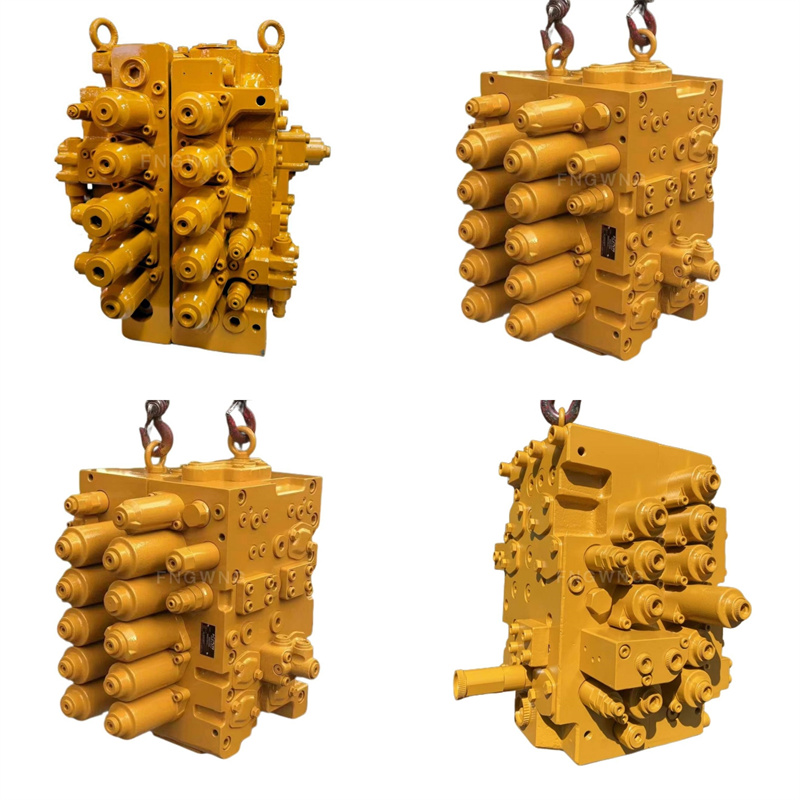

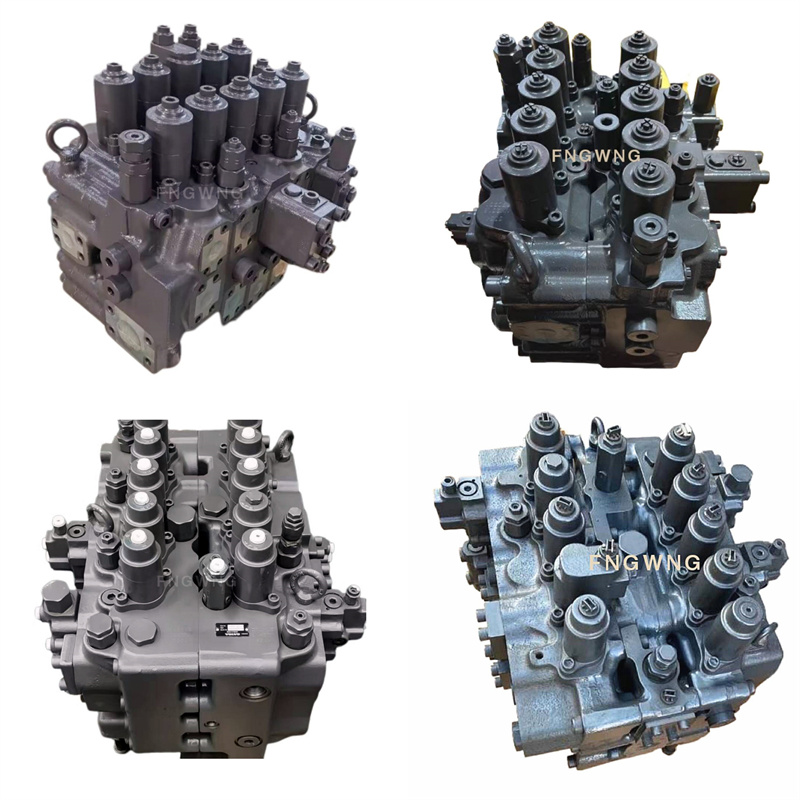

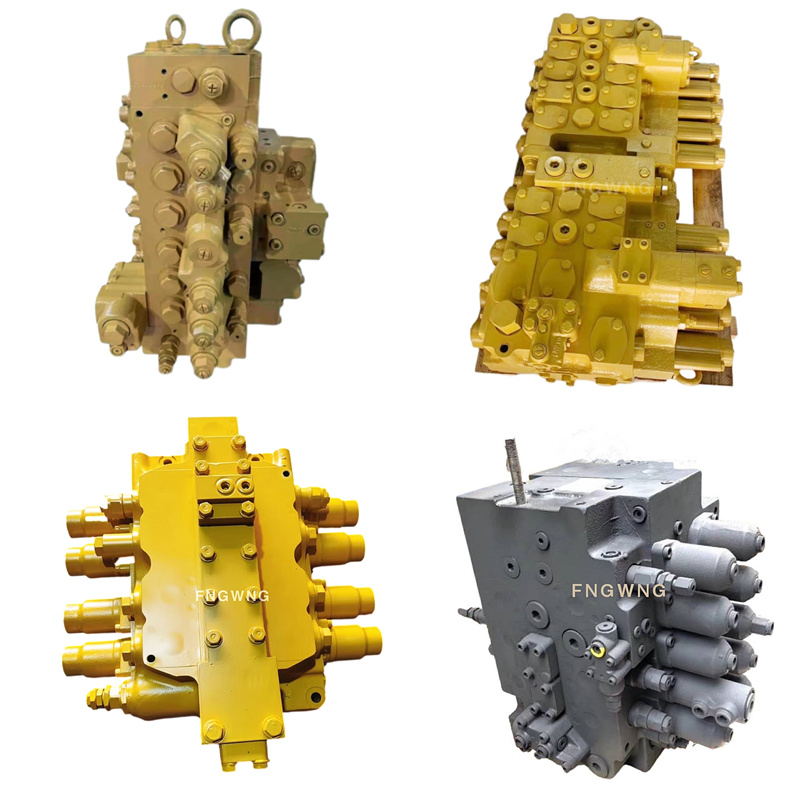

Construction Machinery Parts Main Control Valve

March 01, 2024

The Main Control Valve is a critical component in an excavator's hydraulic system. It is responsible for directing and controlling the flow of hydraulic fluid to various actuators and functions within the machine, such as the boom, dipper arm, bucket, and swing motor.

Main Control Valve’s a breakdown of its key aspects:

1. Functionality: The main control valve manages the hydraulic fluid distribution based on the operator's input from the joysticks. It controls the movement and speed of the excavator's working parts.

2. Components:

- Spool Valve: This is the heart of the main control valve. It moves inside a sleeve to open or close different passages for hydraulic fluid.

- Housing: Houses the spool valve and other components.

- Seals and O-Rings: Ensure that hydraulic fluid does not leak from the system.

- Ports: Connect to hydraulic lines, allowing fluid to flow to and from the valve.

3. Operation: When the operator manipulates the joystick, it sends signals to the valve, causing the spool to move and redirect fluid to the desired actuator, thus controlling the excavator's movements.

4. Maintenance: Regular maintenance is crucial for the proper functioning of the main control valve. This includes cleaning, inspecting seals, and ensuring all connections are tight to prevent leaks.

5. Troubleshooting: Issues with the main control valve can lead to poor performance or complete failure of the excavator's functions. Symptoms might include sluggish operation, inconsistent response, or failure to operate certain functions.

If your machinery need to be replaced main control valve or need to repair, feel free to Send Us Your Inquiry!
