Hydraulic Pump Spare Parts Swash Plate is a key component in Construction Machinery hydraulic pumps, particularly in axial piston pumps and Construction Machinery Parts hydraulic motors. It's an essential part that helps convert rotational motion into reciprocating motion, which is necessary for the pump to function properly. Swash plates play a critical role in the operation of many hydraulic systems, offering a balance between efficiency, power, and flexibility.
How It Works:

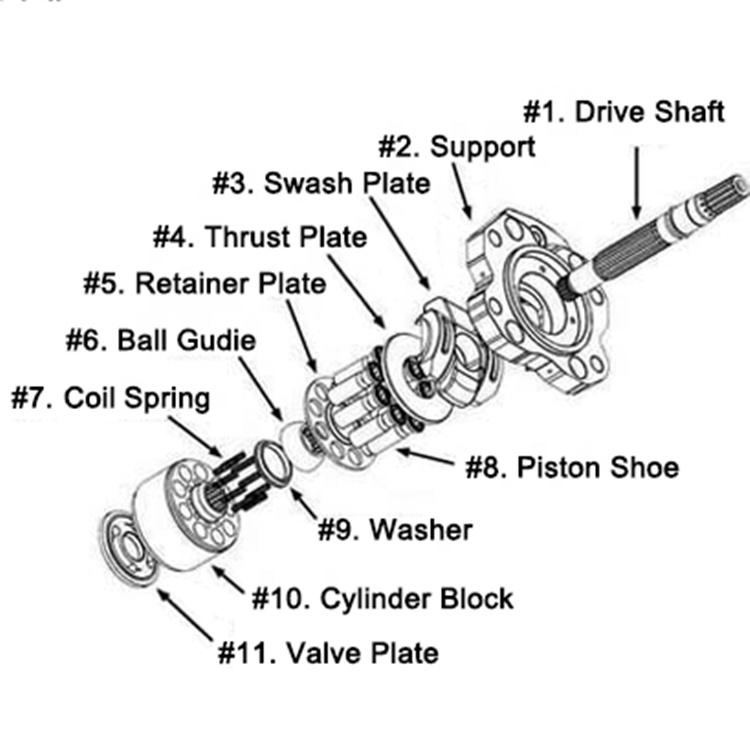

1. Design: The swash plate is typically a flat or slightly inclined plate that can pivot around an axis. It is positioned inside the pump housing at an angle relative to the drive shaft.
2. Function: As the drive shaft rotates, it causes the swash plate to rotate as well. The inclination of the swash plate (its angle) determines the stroke length of the pistons. When the swash plate is more inclined, the stroke length is longer, resulting in higher fluid displacement per revolution.
3.Piston Movement: Pistons are arranged radially around the drive shaft and are connected to the swash plate through shoes or slipper elements. As the swash plate rotates, its inclination causes the pistons to move back and forth within their respective cylinders, drawing in fluid on one half of the cycle and expelling it on the other half.
4. Adjustability: In some applications, the swash plate can be adjusted to change its angle, allowing for variable displacement of the hydraulic pump. This makes the pump versatile for different operating conditions or loads.
Applications:
-Construction Equipment: Excavators, bulldozers, and other heavy machinery use these pumps for their high power density and ability to handle high pressures.
Advantages:
- High Efficiency: These pumps are known for their high efficiency due to their design.
- Variable Displacement: Allows for adjustment of fluid output, making them adaptable to different operating conditions.
- Compact Design: They can provide significant power output in a relatively compact form factor.
Maintenance Considerations:
Regular maintenance is crucial to ensure optimal performance and longevity of the pump. This includes checking for wear on the swash plate, ensuring proper lubrication, and inspecting seals and other components for leaks or damage.
If you need to replace your Construction Machinery Parts Hydraulic Pump Spare Parts Swash Plate, feel free to Send Us Your Inquiry!
